Size
Brand
Material
Total Weight:
Fiber Orientation:
Warp:
Weft:
Sold in 1 YD, 5 YD, and 10 YD lengths
Chomarat
Fiberglass
500 gsm
0°/90° (BT)
4 ends/cm - 600 tex
4 ends/cm - 600 tex

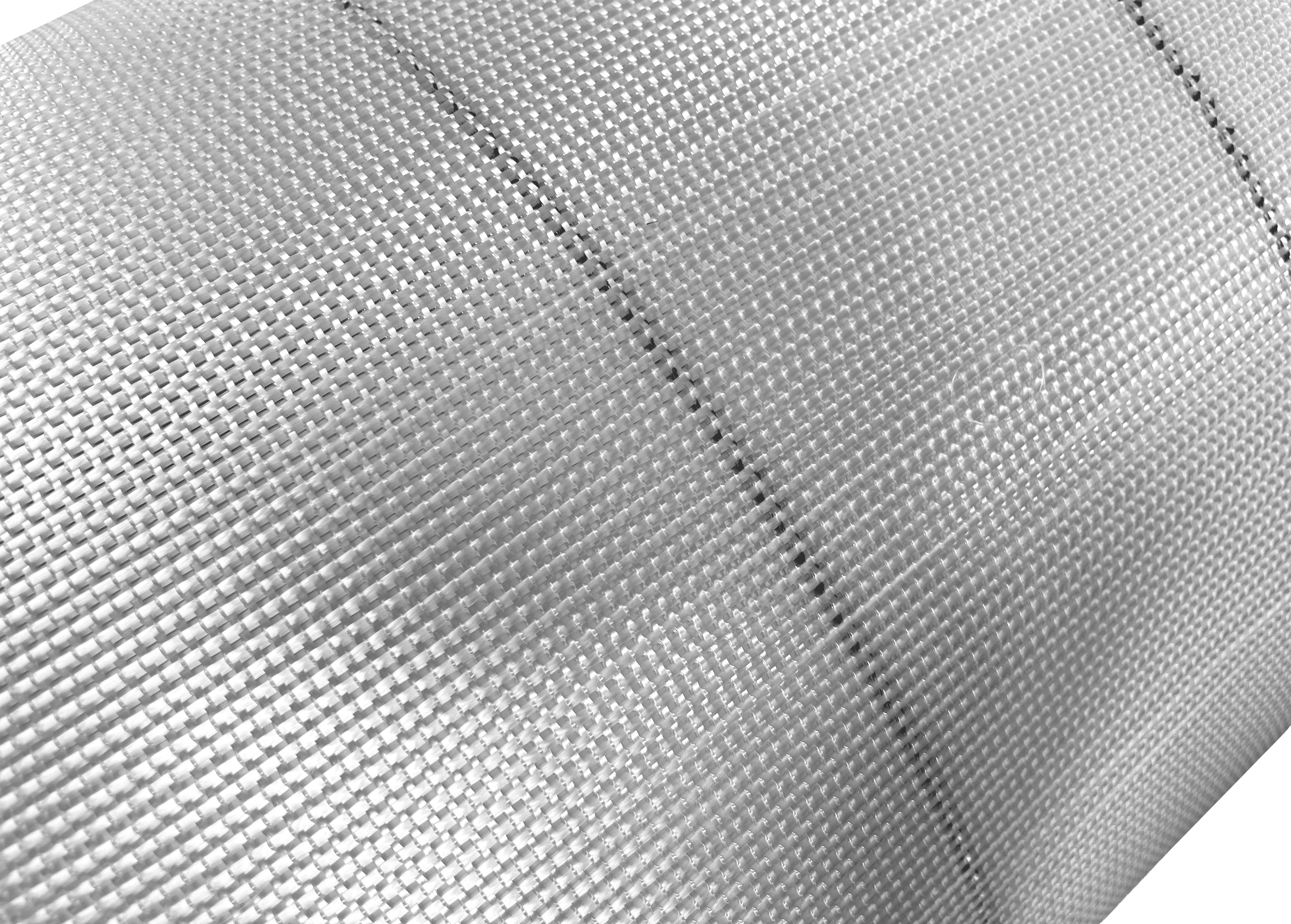

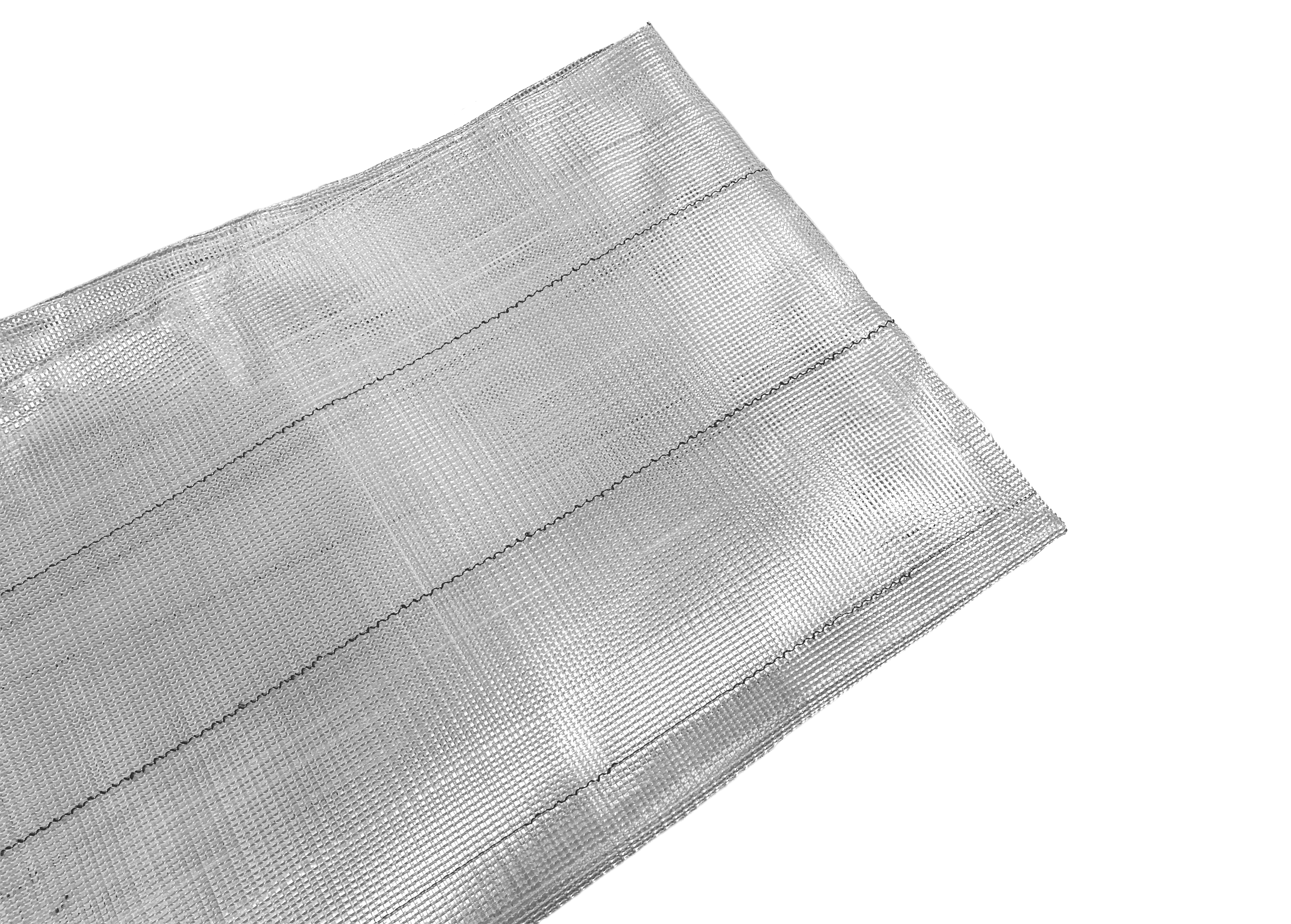

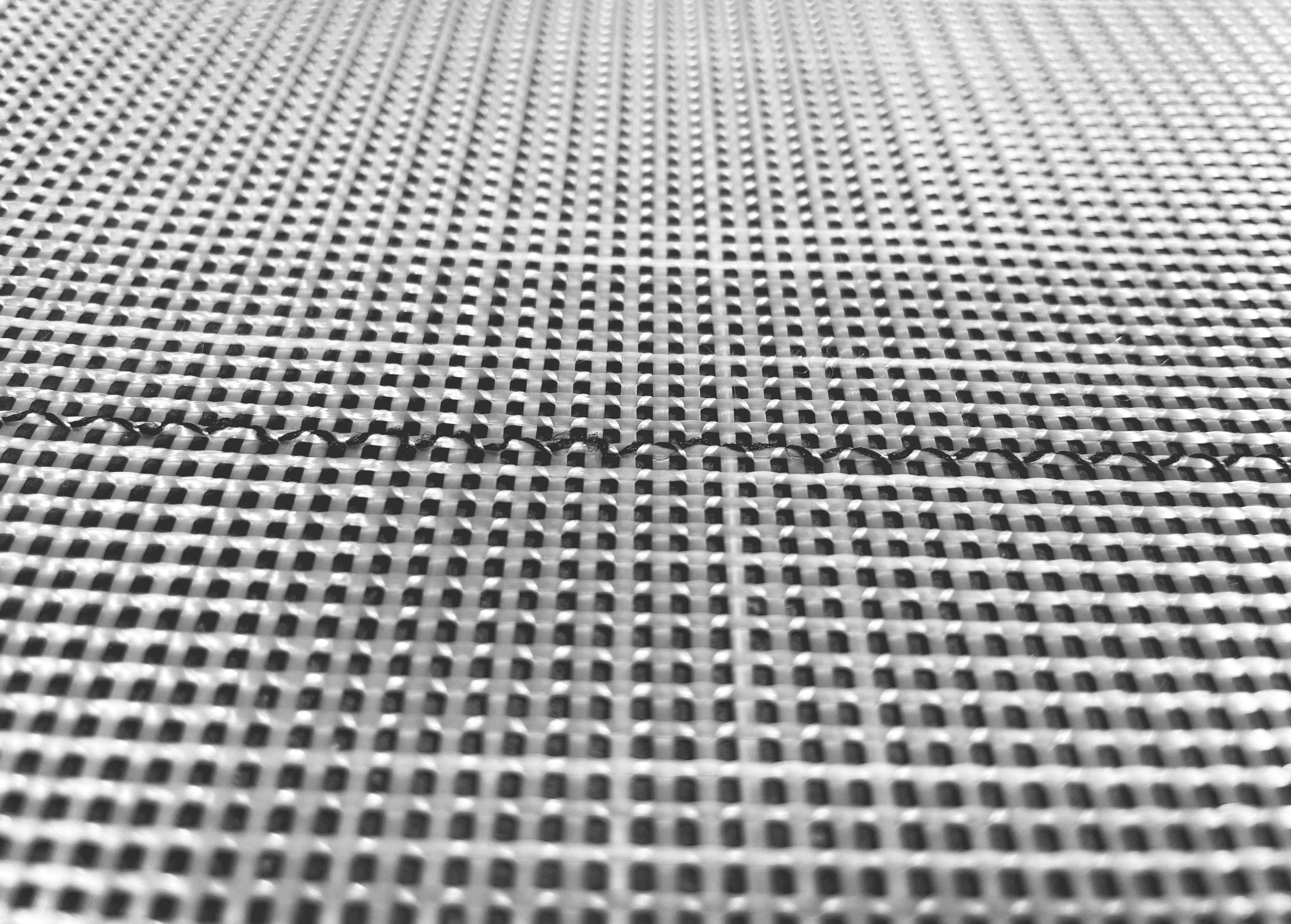

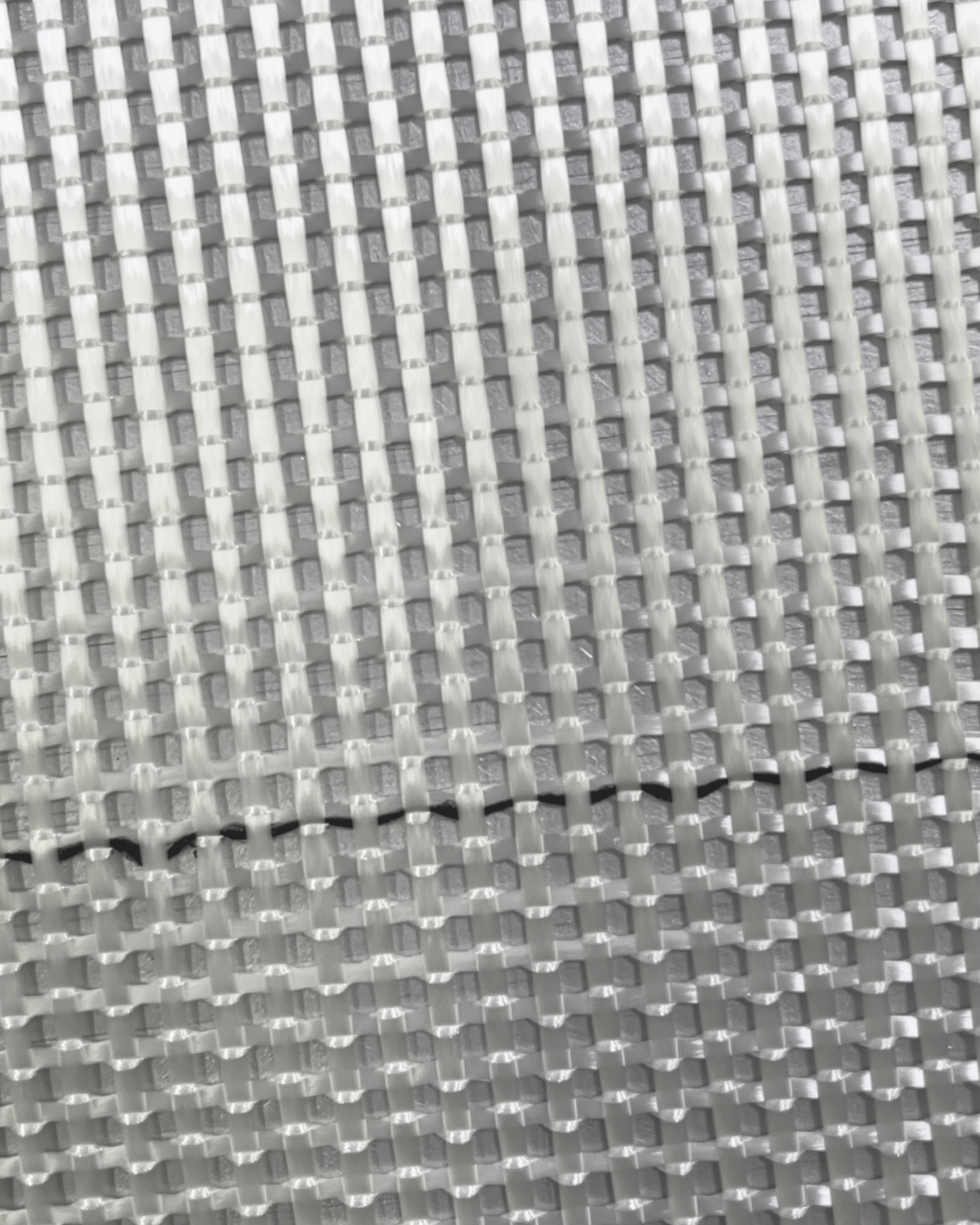

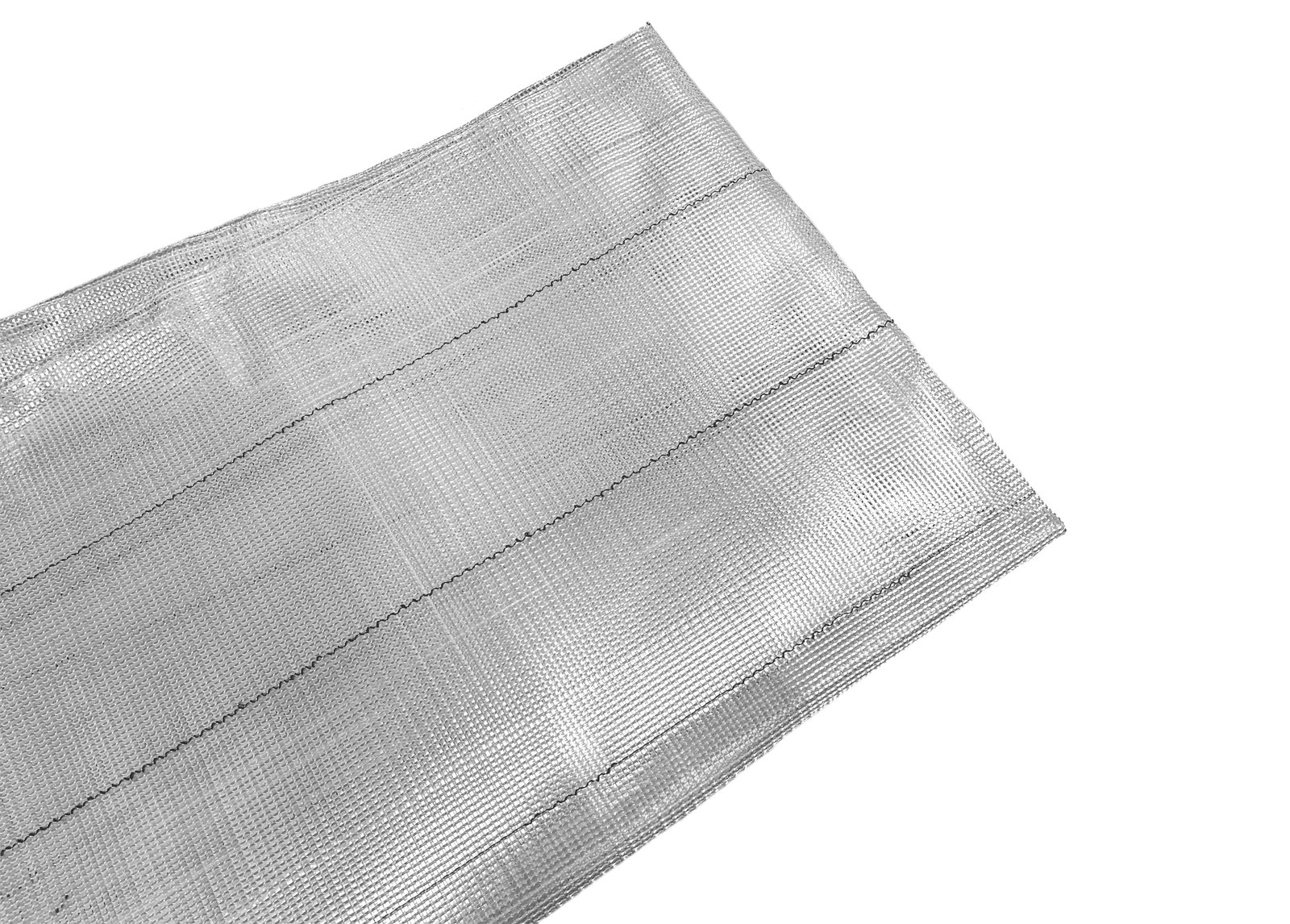

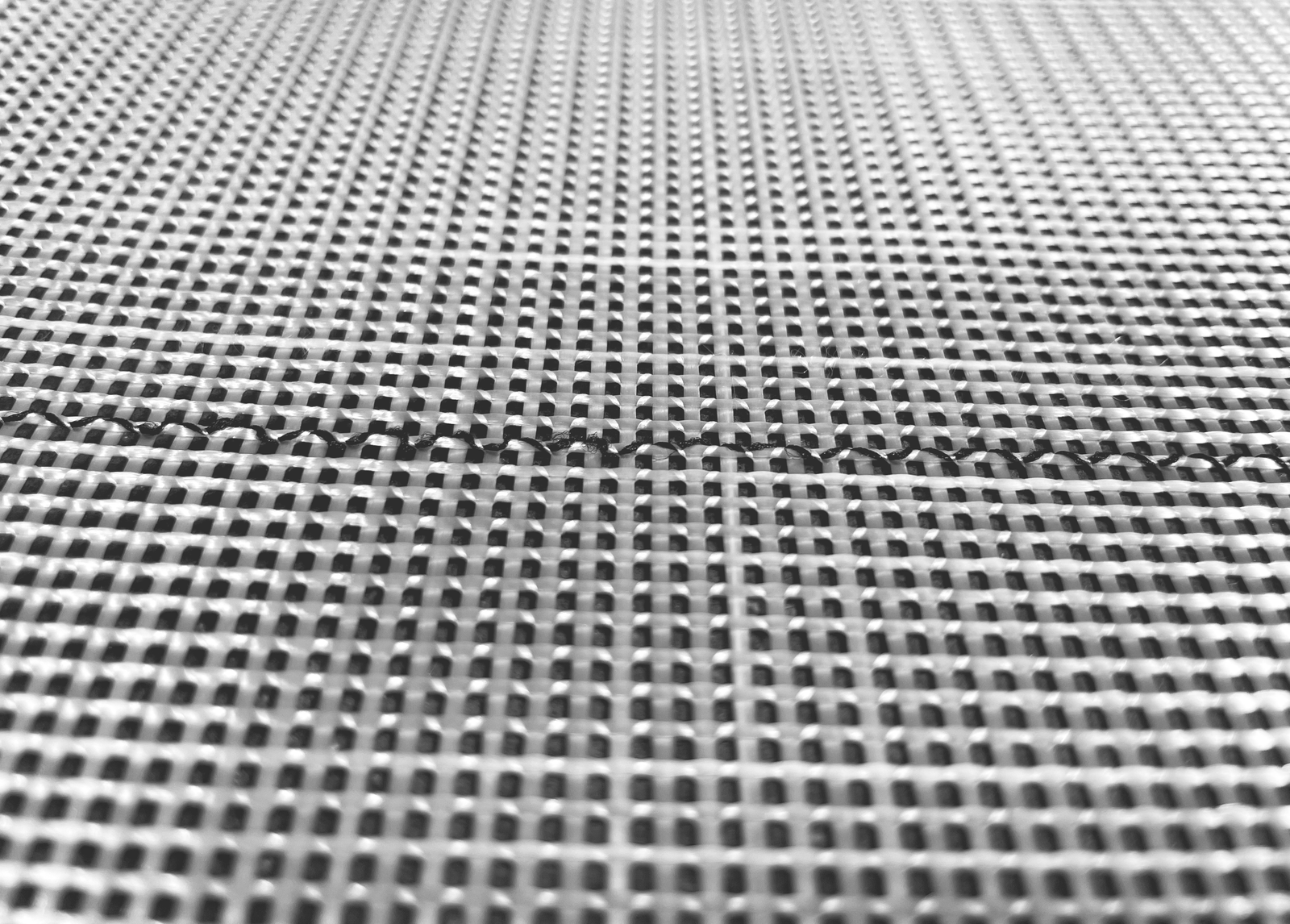

G-FLOW™ from Chomarat is a bidirectional (0°/90°) and balanced 500 gsm reinforcement made from fiberglass. It offers both structural and flow media properties for infusion and RTM processes. Its innovative structural design allows the infusion of resin without an additional internal or external flow medium, offering the best compromise between mechanical properties and flow performance.
- Same mechanical performance as standard structure: G-FLOW™ replaces an external flow media and a structural reinforcement (0/90°).
- Allows faster infusion compared to external flow media.
- 100 times more permeable compared to NCF or Woven Roving reinforcements.
- Cost saving: Reduced preparation time, less waste, less disposal costs.
G-FLOW ships folded to reduce package size, lower shipping costs, and simplify storage. Orders for 5- and 10-yard lengths will be fulfilled as a single continuous piece, rather than multiple 1-yard sheets
