Specifications
Max Use Temp:
Color:
Fiber:
Weight:
120°C (248°F)
Blue mesh, red release film and white with pin stripes peel ply
Polyethylene (PE) and Nylon (PA)
235g/m² | 6.93oz/yd²
Description

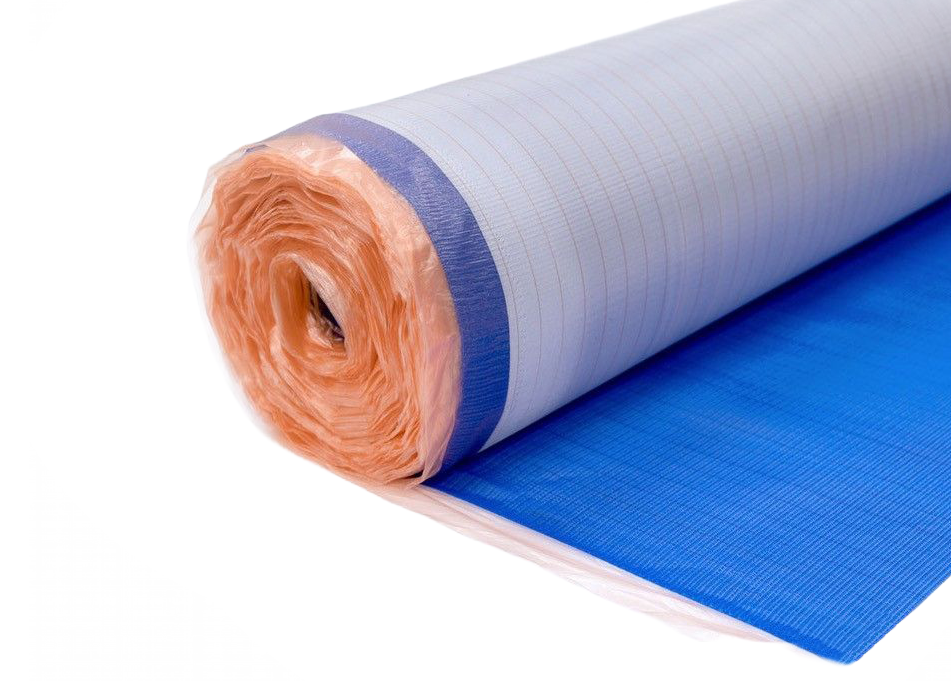

Vac-Ply Combi 1 is an innovative combination product of perforated release film, knitted infusion mesh, and peel ply designed for vacuum infusion applications. This combination peel ply release film reduces lay-up time and complexity, and is more conformable than cast grid meshes. Our peel ply and release film also strips easily and cleanly from the laminate surface due to its excellent release properties. Removal after cure can be done in two ways: either all three layers or just the release film and mesh, leaving the peel ply as temporary protection for the laminate surface.
Features
- Perforated release film combined with knitted infusion mesh and peel ply.
- Strips after cure in two ways. Either all three layers together or just the release film and mesh leaving the peel ply as temporary protection for the laminate surface.
- Reduces layup time and complexity.
- More conformable than traditional cast grid meshes.
- Easily tailored to complex parts.
SHIPPING INFORMATION
All orders are processed within 5-7 business days unless otherwise specified. Full-roll orders require up to 7 business days to process due to additional handling and packaging requirements. Orders are not shipped or delivered on weekends or holidays. Please note that processing time for orders placed during the holidays will be subject to a longer lead time due to high order volumes.
Vac-Ply ships folded to reduce package size, lower shipping costs, and simplify storage. Orders for 5- and 10-yard lengths will be fulfilled as a single continuous piece, rather than multiple 1-yard sheets. Full-roll orders will ship as a roll.
